Carton Conveyor Series

Carton Conveyor Series

D10-BC Belt Conveyor

D10-BC series belt conveyors use a continuous and flexible flat belt to convey cartons and totes. The belt is arranged as a continuous loop driven by the drive pulley and tensioned by means of a take up roller. The friction force between the rotating pulley and the belt drives the belt forward.

Product features:

• Simple structure
• Modular construction
• Smooth operation
• Easy maintenance
• Able to convey goods of various shapes, sizes and weights
• Able to achieve lift and steering transportation of goods
• Conveyor belts supported by roller or slide bed

Target Industries

Chemical industry, light industry, mechanical industry, E-commerce industry, electronics industry, pharmaceutical industry, foods industry, tobacco industry, post and telecommunications industry, etc.

Environment requirement

• Temperature and humidity: temperature: -25 to + 40℃; humidity: below 80%.
• Indoor (no direct sunlight or direct contact with water).
• Environment: no corrosive gas, no explosive gas, no steam.

Control system

An easy to operate control system dependent project size and requirement to control equipment including start-stop, speed,
diverting, merging, steering of goods as well as identification detection system.

D10-BC Straight belt conveyor

D10-BC110, End drive with horizontal roller bed

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• Two types of motor installation.
• Motor power: 0.37-2.2kw.
• Speed: max. 120m/min.
• Length: 1,200-20,000mm.

D10-BC120, Center drive with horizontal roller bed

• Six widths: 417, 517, 617, 717, 817, 917.
• Two types of motor installation.
• Motor power: 0.37-4kw.
• Speed: max. 120m/min.
• Length: 3,000-30,000mm.

D10-BC130, End drive with horizontal slider bed

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• Two types of motor installation.
• Motor power: 0.37-2.2kw.
• Speed: max. 120m/min.
• Length: 1, 200-20,000mm.

D10-BC140, Center drive with horizontal slider bed

• Six widths: 417, 517, 617, 717, 817, 917.
• Two types of motor installation.
• Motor power: 0.37-4kw.
• Speed: max. 120m/min.
• Length: 3, 000-30,000mm.

D10-BC300, Brake spacer conveyor

• Six widths: 417, 517, 617, 717, 817, 917.
• Three configurations.
• Four drive ratios: 1: 1.2, 1: 1.5, 1: 1.8, 1: 2.
• Motor power: 0.37-2.2kw.
• Speed: max. 120m/min.

D10-BC220, Center drive with inclined roller bed

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• Two types of motor installation.
• Motor power: 0.37-4kw.
• Speed: max. 120m/min.
• Angle: 5°-25°.

D10-BC230, End drive with inclined slider bed

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• Two types of motor installation.
• Motor power: 0.37-2.2kw.
• Speed: max. 120m/min.
• Angle: 5°-25°.

D10-BC240, Center drive with inclined slider bed

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• Two types of motor installation.
• Motor power: 0.37-2.2kw.
• Speed: max. 120m/min.
• Angle: 5°-25°.

D10-BC Inclined belt conveyor

D10-BC210, End drive with inclined roller bed

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• Two types of motor installation.
• Motor power: 0.37-4kw.
• Speed: max. 120m/min.
• Angle: 5°-25°.

D10-BC Drive module

BC111 End drive module

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• One drive pulley diameter.

BC115 End drive module

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• One drive pulley diameter.

D10-BC Take up module

BC112 End take up module

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• One drive diameter.

BC113 Center take up module

• Seven widths: 317, 417, 517, 617, 717, 817, 917.

BC117 End drive with take up module

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• Two drive pulley diameters.

D10-BC Body module

BC114 Slider bed intermediate module

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• 3m standard length, other sections in 150mm increments.

D10-BC Idler module

BC116 End idler module

• Seven widths: 317, 417, 517, 617, 717, 817, 917.

BC131 Slider bed intermediate

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• 3m standard length, other sections in 150mm. decrement.

BC211 Power feeder section

BC211 Power feeder section

• Seven widths: 317, 417, 517, 617, 717, 817, 917.
• feeder sections for incline/decline.

D10-BC Top curve module

BC212 Top curve

• Seven widths: 317, 417, 517, 617, 717, 817, 917.

Sites photos

D10-LD lineshaft driven roller conveyors allow complex power transmission to conveyor rollers, diverters, etc. by utilizing only one drive unit thereby reducing the total number of drives required in a system. Overall cost of the system is reduced as fewer drive units are required. This reduces the associated costs of wiring and motor controls as well as lowering the running costs of the system. The clean, quiet and flexible system is the best solution for distribution centers with dust free environments, electronic assembly, food, medicine and many other applications.

Product features:

• Clean, low-noise, economical
• Flexible design modification
• Standard, modularized, variety of combination
• Static accumulation of goods
• Long service life
• Easy maintenance, low cost
• Motor drives shaft, O belt links roller with shaft, roller drives roller

Application environment and industry

• Temperature: 5 to +40℃.
• Humidity: below 80%.
• Site: indoor (no direct sunlight, no direct contact with water).
• Standard environment: no corrosive gas, no explosive gas, no steam.
• Applicable industries: FMCG, tobacco, wine, E-commerce, pharmaceutical, electronic appliance, etc. Ultimately the best choice for dust free environments, electronic assembly areas, food, pharmaceutical etc.

General specifications

D10-LD Straight module

LD110 Intermediate with drive

• 3m standard section.
• Seven widths: 317, 417, 517, 617, 717, 817, 917mm.
• 3 roller pitches: 75, 112.5, 150mm.
• Two types of mounting hole for roller: hex hole and slot.
• Motor power: 0.25-1.5Kw.
• Speed: 15, 18, 21, 25, 30, 35.

D10-LD120 Power crossover

• Seven widths: 317, 417, 517, 617, 717, 817, 917mm.
• 3 roller pitches: 75, 112.5, 150mm.
• Two types of mounting hole for roller: hex hole and slot.
• Fixed length: 600mm.

D10-LD210 Intermediate with slave

• 3m standard, 3m left, 3m right.
• Seven widths: 317, 417, 517, 617, 717, 817, 917mm.
• 3 roller pitch: 75, 112.5, 150mm.
• Two types of mounting hole for roller: hex hole and slot.
• Min length: 300mm, in 75mm increments.

D10-LD220 Intermediate odd length

• Less than 3m standard length.
• Seven widths: 317, 417, 517, 617, 717, 817, 917mm.
• 3 roller pitch: 75, 112.5, 150mm.
• Two types of mounting hole for roller: hex hole and slot.
• Min length: 300mm, in 75mm increments.

D10-LD Curve module

D10-LD310 Curve 90°/ D10-LD 320 Curve 60°
D10-LD330 Curve 45°/ D10-LD340 Curve 30°

• Curve angle: 90°, 60°, 45°, 30°.
• Seven widths: 317, 417, 517, 617, 717, 817, 917mm.
• Inner radius roller pitch: 75mm.
• Curve can be with drive or slave driven.
• Mounting hole for roller: hex hole.

D10-LD Spur module

D10-LD410 Spur 30°/D10-LD410 spur 45°

• Spur angle: 30°, 45°.
• Seven widths: 317, 417, 517, 617, 717, 817, 917mm.
• Roller pitch: 75mm.
• Two types of mounting hole for roller: hex hole and slot.
• L/R hand spurs.
• Spur can be with drive or slave driven.

D10-LD Power roller gate module

D10-LD710 Power Roller Gate

• Horizontal section length: 600mm, gate section length: 800mm.
• Seven widths: 317, 417, 517, 617, 717, 817, 917mm.
• Roller pitch: 75mm.
• Mounting hole for roller: hex hole.
• When arise section is horizontal, it will use power from
• horizontal section.

D10-LD Transfer module

D10-LD510 Skewed Wheel Diverter

• Skewed wheel angle: 30°, 45°,double line skewed wheel.
• Six widths: 417, 517, 617, 717, 817, 917mm.
• Roller pitch: 112.5mm, flxed length of frame ( TBC).
• 1.4 times transfer speed of roller conveyor.
• Lifting motor power: 60W, inclined wheel motor power: 60W.
• Conveyor length: 900mm.

D10-LD Transfer module

LD520 Right angle chain transfer

• Transfer power comes from line shaft, single direction.
• Six widths: 417, 517, 617, 717, 817, 917mm.
• Roller pitch: 75, 112.5; chain pitch: 337, 225, 150mm.
• 1.4 times transfer speed of roller conveyor.
• Pneumatic lift; 50mm cylinder diameter; 20mm stroke.
• Conveyor length: 825mm.

D10-LD Transfer module

LD530 Right angle chain transfer

• Transfer power with motor, double direction.
• Six widths: 417, 517, 617, 717, 817, 917mm.
• Roller pitch: 75, 112.5; chain pitch: 337, 225, 150mm.
• Transfer motor power: 90W.
• Pneumatic lift; 50mm cylinder diameter; 20mm stroke.

D10-LD Skewed roller module

D10-LD810 Skewed Roller

• Length: 1,500mm.
• Five widths: 517, 617, 717, 817, 917mm.
• Roller pitch: 75, 112.5mm.
• Mounting hole for roller: hex hole.

D10-LD Stopper module

LD910 Pneumatic Stopper

• Double guided rod cylinder, 50mm stroke.
• Suitable for conveyors with different widths and roller pitches.

Sites photos

The D10-BD belt driven live roller conveyor is a highly effective roller conveyor used commonly where goods are loaded directly on the carrier rollers. The D10-BD conveyor uses a flat belt or V belt to drive the carrier rollers. The belt contacts the carrier roller from underneath and drives the carrier roller through friction providing power to convey the goods. The design is suitable for conveying various products with a flat and firm bottom.
Typically, end drive units are equipped with individual belt take up unit. Centre drive units have an integral take up unit. Where longer conveyors require additional belt tension, an individual take up unit can also be installed.

Product features:

• Suitable for diverting and merging: driven from underneath the roller, top of carrying roller higher than top of frame on both sides
• Safe roller drive: Carrying rollers are mounted in an open slot. Rollers floats on the drive belt and jump out should a jam occur
• Strong driving force on the roller: Rollers float on the drive belt. When goods apply positive pressure to the floating roller, friction between the roller and belt is increased thereby increasing the driving force on the roller
• Low noise when running at high speed: flexible drive belt, precision drive roller

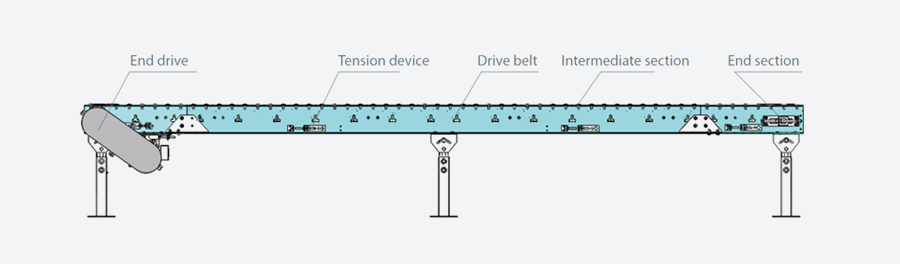

Belt driven live roller conveyors are composed of the following modules. Different combinations of these modules can
create conveyors of different length as required:

• Intermediate section
• Drive unit (end drive or center drive)
• End section
• Belt tension unit
• Drive belt

D10-VR V-belt driven live roller conveyor is a new type of roller conveyor. Rollers are driven by V belts with a fixed length. Each V belt drives two adjacent rollers. V belt driven conveyors are simple and easily installed and maintained. Drive options include 24V DC motorized rollers and motors with a reduction gearbox. Drive options can be combined to provide roller conveyors with different lengths and types. 24V DC motorized roller drives are mounted within the conveyor frame at the same level as therollers; Motor and reducer drive units are mounted under the conveyor frame.

Product features:

• Strong power transmission: V belts have outstanding mechanical drive capability, high torque transmission.
• Convenient combination: one drive for one unit for different length combinations.
• Zero-pressure accumulation: independent drive unit combinations can be used to provide zero pressure accumulation.
• Adjustable speed: use of 24V DC motorized roller and drive control card can adjust running speed.
• Low running noise: V belt driven, no driving noise.

Basic modules of V belt driven roller conveyor:

• Straight conveying section
• Straight accumulation section
• Merge/divert spur
• Curve

Gravity conveyors are a simple, flexible labor-saving and low-cost handling equipment. It is the most common product widely used in workshops, farms, warehouses and logistics centers, Damon gravity conveyor feature consistent quality, cost-effective and easy assembly due to its standardized and modular design and industrialized mass manufacturing. Flat packaging makes transportation and storage very convenient. Damon also maintains tock of these standard modules for fast delivery.

D10-GC610 Ball transfer platform

Features:

• Light load, low price.

Application:

• Gravity roller conveyors are uUsed to transport light loads,such as cartons,, magazines, etc. in an indoor environment.

D10-GC210 Skatewheel Conveyor

Features:

• Light weight, low price, economical and practical.
• Product flow by manual pushing or by gravity under its own weight when the conveyor is declined at a sufficient angle.

Application:

• Used in indoor environments, light load;
• Used for transport and temporary storage of boxed unit loads with flat bottom.

D10-GC610 Ball transfer platform

Features:

• Light weight, low price, economical and practical.
• Product flow by manual pushing or by gravity under its own weight when the conveyor is declined at a sufficient angle.

Application:

• Used in indoor environments, light load;
• Used for transport and temporary storage of boxed unit loads with flat bottom.

D10-110 Gravity roller conveyor

Features:

• Light weight, low price, economical and practical
• Product flow by manual pushing or by gravity under its own weight when the conveyor is declined at a sufficient angle.

Application:

• Used in indoor environment, light load;
• Used for transport and temporary storage of boxed unit loads with flat bottom.

D10-330 Gravity roller curve

Application:

• Used in indoor environment, light load; Used for transport and temporary storage of boxed unit load with flat bottom.

Features:

• Light weight, low price, economical and practical. Double row of rollers arrangement, flexible turning of goods. Goods flow by manual pushing, no need for power.
